Description

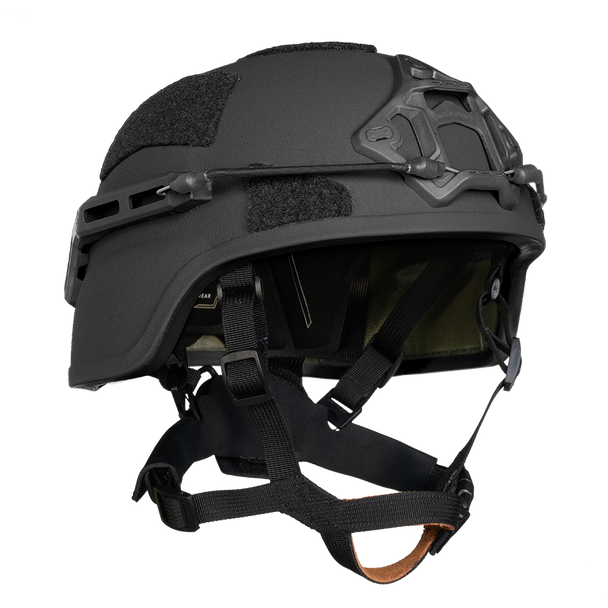

AIRE LE Ballistic Helmet
Overview
Extended Rifle-Resistant, High Protection Assault Helmet. ArmorSource’s AIRE EX is a revolutionary rifle-resistant / small arms Rifle Resistance Helmet designed specifically for SWAT team, front line troops and counter-terrorism units around the globe.This lightweight and innovative solution incorporates proprietary high-performance ballistic materials in a proven, battle-tested ACH shape. The AIRE EX is a highly modular ballistic helmet designed and tested to deliver increased levels of protection for today's elite soldier.
Sizing
| Helmet Size | Head Length | Head Width | Circumference |
|---|---|---|---|
| Small | Up to 7¼" / 184 mm | Up to 6½" / 162 mm | Up to 21¼" / 538 mm |
| Medium | 7¼" / 184 mm to 7¾" / 198 mm | Up to 6½" / 162 mm | 21¼" / 538 mm to 22½" / 573 mm |
| Large | 7¾" / 198 mm to 8¼" / 210 mm | Up to 6½" / 162 mm | 22½" / 573 mm to 23½" / 597 mm |
| Extra-Large | 8¼" / 210 mm and over | 6½" / 162 mm and over | 23½" / 597 mm and over |
Additional Information
- Warranty: No returns or exchanges
- Legal: Cannot be shipped to NY or CT. Subject to US export regulations.
- Purchase Information: $49 shipping fee. NOTE: Shipping fees are non-refundable. For orders shipping to Puerto Rico, please call to place your order directly.
Warranty Information
Specifications Chart
AIRE EX Ballistic Helmet
| Shape/Design | U.S. Army ACH Geometry |
|---|---|
| Shell Construction | Proprietary blend of Polyethylene and Composite Materials |
| Ballistic Protection |
U.S. Army GL-PD-09-04 STD
|
|
Rifle Resistance Performance
|
7.62x39 LC V50 > 2676 f/s; 5.56x45 (M193) V50 > 2986 f/s; 7.62X51 M80 NATO round: V0 > 2100 f/s (640 m/s) |
|
Fragments Protection
|
17 gr. V50 > 2950 f/s (900 m/s)
|
|
Environmental / Mechanical Protection
|
U.S. Army GL-PD-09-04 STD
|
| Certification |
From an NIJ certified laboratory
|
|
Extreme Testing Conditions
|
Performs under temperature between 160°F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion
|
| Configurations |
100% Boltless (Durability Verified)
|
| Use |
First Line Troops; SWAT
|
|
Shell Thickness
|
0.4” (±0.1") / 10 mm (±2.5mm)
|
|
Finished Shell Nominal Weight*
|
Medium 1.22 kg (2.7 lbs); Large 1.3 kg (2.9 lbs); X-Large 1.42 kg (3.1 lbs)
|
|
Finished Helmet Nominal Weight**
|
Medium 1.4 kg (3.1 lbs); Large 1.45 kg (3.2 lbs); X-Large 1.6 kg (3.5 lbs)
|
|
Fully-Loaded High-Cut Nominal Weight***
|
Medium 1.43 kg (3.1 lbs); Large 1.5 kg (3.3 lbs); X-Large 1.61 kg (3.5 lbs)
|
